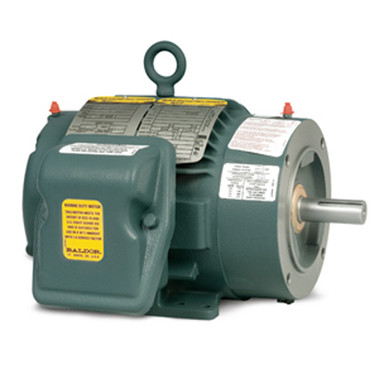

Baldor-Reliance CENCP83581T-4 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TENV, F1

Specs

Catalog Number:

CENCP83581T-4"

Enclosure:

TENV

Frame:

143TC

Frame Material:

Iron

Frequency:

60.00 Hz

Output @ Frequency:

1.000 HP @ 60 HZ

Phase:

3

Synchronous Speed @ Frequency:

1800 RPM @ 60 HZ

Voltage @ Frequency:

460.0 V @ 60 HZ

XP Class and Group:

CLI GP A,B,C,D

XP Division:

Division II

Agency Approvals:

UR CSA EEV CSA

Ambient Temperature:

40 °C

Auxillary Box:

No Auxillary Box

Auxillary Box Lead Termination:

None

Base Indicator:

Rigid

Bearing Grease Type:

Polyrex EM (-20F +300F)

Blower:

None

Constant Torque Speed Range:

1.2

Current @ Voltage:

1.500 A @ 460.0 V

Design Code:

B

Drip Cover:

No Drip Cover

Duty Rating:

CONT

Efficiency @ 100% Load:

87.5 %

Electrically Isolated Bearing:

Not Electrically Isolated

Feedback Device:

NO FEEDBACK

High Voltage Full Load Amps:

1.5 a

Front Face Code:

Standard

Front Shaft Indicator:

None

Heater Indicator:

No Heater

Insulation Class:

F

Inverter Code:

Inverter Ready

KVA Code:

N

Lifting Lugs:

Standard Lifting Lugs

Locked Bearing Indicator:

Locked Bearing

Max Speed:

2700 rpm

Motor Lead Exit:

Ko Box

Motor Lead Termination:

Flying Leads

Motor Lead Quantity/Wire Size:

3 @ 18 AWG

Motor Type:

0524M

Mounting Arrangement:

F1

Number of Poles:

4

Overall Length:

12.00 IN

Power Factor:

70

Product Family:

Chem Process S/P 32-8 IEEE 841

Pulley End Bearing Type:

Ball

Pulley Face Code:

Standard

Pulley Shaft Indicator:

Standard

Rodent Screen:

None

Service Factor:

1.15

Shaft Diameter:

0.875 IN

Shaft Extension Location:

Pulley End

Shaft Ground Indicator:

No Shaft Grounding

Shaft Rotation:

Reversible

Shaft Slinger Indicator:

Shaft Slinger

Speed:

1765 rpm

Speed Code:

Single Speed

Motor Standards:

NEMA

Starting Method:

Direct on line

Thermal Device - Bearing:

None

Thermal Device - Winding:

None

Vibration Sensor Indicator:

No Vibration Sensor

Winding Thermal 1:

None

Winding Thermal 2:

None

XP Temp Code:

T4
