Baldor-Reliance CDPT3306 .25HP, 1750RPM, DC, 56C, 3320P, TENV, F1, N

  • SKUTO77RB
  • Brand
  • Manufacturer Part #CDPT3306
  • Available to Order

    Expected to Arrive ***

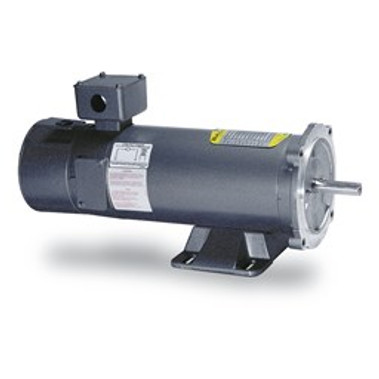

 Images may not be exact. Please refer to Part # and Description.

$2,113.04

Baldor-Reliance CDPT3306 .25HP, 1750RPM, DC, 56C, 3320P, TENV, F1, N Specifications

  • Armature Voltage:
    180 V"
  • Base Speed:
    1750 rpm
  • Enclosure:
    TENV
  • Frame:
    56C
  • Frame Material:
    Steel
  • Output Power:
    0.250 HP
  • Agency Approvals:
    CE CSA UR WEEE
  • Ambient Temperature:
    40 °C
  • Armature Current:
    1.3 a
  • Armature Inertia:
    4.680 lb-ft2
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Feedback Device:
    TACHOMETER
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Lifting Lugs:
    No Lifting Lugs
  • Motor Lead Exit:
    Ko Box
  • Motor Lead Termination:
    Flying Leads
  • Motor Lead Quantity/Wire Size:
    2 @ 18 AWG
  • Mounting Arrangement:
    F1
  • Overall Length:
    14.05 IN
  • Product Family:
    General Purpose
  • Pulley End Bearing Type:
    Sealed Bearing
  • RoHS Status:
    ROHS COMPLIANT
  • Service Factor:
    1.00
  • Shaft Diameter:
    0.625 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Rotation:
    Reversible
  • Shaft Slinger Indicator:
    No Slinger
  • Motor Standards:
    NEMA
