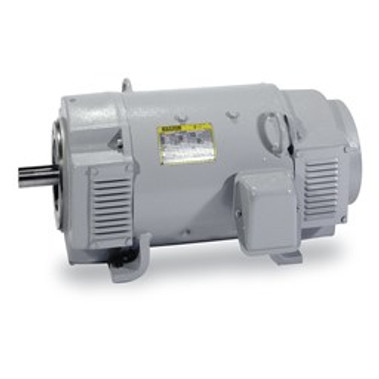

Baldor-Reliance CDMG2320 0288ATC, 20KW, 1750RPM, 230, 230, DPFG,

  • SKUFU55QA
  • Brand
  • Manufacturer Part #DMG2320
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$18,741.08

Baldor-Reliance CDMG2320 0288ATC, 20KW, 1750RPM, 230, 230, DPFG, Specifications

  • Armature Voltage:
    230 V"
  • Base Speed:
    1750 rpm
  • Enclosure:
    DPFG
  • Field Voltage:
    230 V
  • Frame:
    288ATC
  • Frame Material:
    Steel
  • Output Power:
    20.000 KW
  • Agency Approvals:
    CSA
  • Ambient Temperature:
    40 °C
  • Armature Current:
    87.0 a
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    No Grease
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Feedback Device:
    NO FEEDBACK
  • Field Winding Type:
    COMPOUND
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Lifting Lugs:
    Standard Lifting Lugs
  • Mounting Arrangement:
    F2
  • Overall Length:
    32.00 IN
  • Service Factor:
    1.00
  • Shaft Diameter:
    1.875 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Slinger Indicator:
    No Slinger
  • Motor Standards:
    NEMA
  • Thermal Device - Bearing:
    None
