Baldor-Reliance

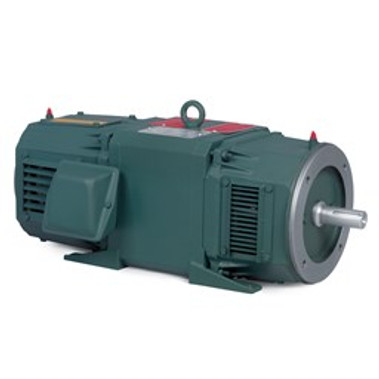

Baldor-Reliance CD2007R-2 C1812ATCZ, 7.5HP, 1750RPM, 240, 240, DPG, F1

MFG Part #
CD2007R-2
SKU#
RM39YF

Specifications

Armature Voltage240 V"
Base Speed1750 rpm
EnclosureDP
Field Voltage240 V
FrameC1812ATCZ
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Armature Voltage:
240 V"
Base Speed:
1750 rpm
Enclosure:
DP
Field Voltage:
240 V
Frame:
C1812ATCZ
Frame Material:
Exposed Laminations
Output Power:
7.500 HP
Agency Approvals:
CCSA US
Ambient Temperature:
40 °C
Armature Current:
27.0 a
Base Indicator:
Rigid
Bearing Grease Type:
Polyrex EM (-20F +300F)
Drip Cover:
No Drip Cover
Duty Rating:
CONT
Feedback Device:
NO FEEDBACK
Field Winding Type:
STAB SHUNT
Frame Prefix:
C
Heater Indicator:
No Heater
Insulation Class:
F
Lifting Lugs:
Standard Lifting Lugs
Mounting Arrangement:
F1
Overall Length:
28.00 IN
Service Factor:
1.00
Shaft Diameter:
1.125 IN
Shaft Extension Location:
Pulley End
Shaft Ground Indicator:
No Shaft Grounding
Shaft Slinger Indicator:
No Slinger
Motor Standards:
NEMA
Thermal Device - Bearing:
None
$14,551.30
