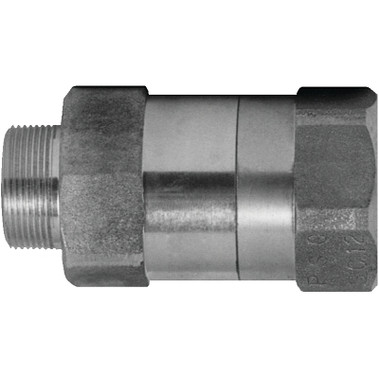

Dixon Valve 3/4 S DIXON SAFETY CHK V (1 EA / EA)

  • SKU238-SCVS6
  • Brand
  • Manufacturer Part #SCVS6
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$119.66

Dixon Valve 3/4 S DIXON SAFETY CHK V (1 EA / EA) Specifications

  • Body Material:
    Brass
  • Designated Fluid:
    Air
  • Flow [Max]:
    180.00 CFM
  • Flow [Min]:
    160.00 CFM
  • Inlet Size:
    3/4 in (NPT)
  • Inlet Type:
    Male Thread
  • Operating Pressure [Max]:
    250.0 psi
  • Operating Temp. [Max]:
    250 °F
  • Outlet Size:
    3/4 in (NPT)
  • Outlet Type:
    Female Thread
  • Type:
    Shut-Off Check Valve
  • Wt.:
    1 lb

 Help us improve our product information

Description

High flow valve to provide optimum performance
Controls excess air flow (SCFM) in only one direction
Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
Solid brass body and valve
Stainless steel spring and roll pin
