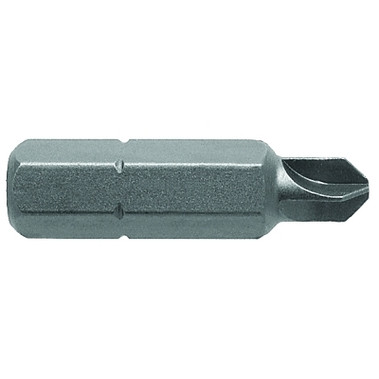

APEX Torq-Set Insert Bits, #5, 1/4 in drive, Hex, Spring (1 EA / EA)

  • SKU071-212-5
  • Brand
  • Manufacturer Part #2125
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$11.86

APEX Torq-Set Insert Bits, #5, 1/4 in drive, Hex, Spring (1 EA / EA) Specifications

  • Drive Size [Nom]:
    1/4 in
  • Drive Type:
    Hex
  • Locking Type:
    Spring
  • Material:
    Tool Steel
  • Operating Type:
    Hand Tool
  • Overall Length [Nom]:
    1 in
  • Tip Size Symbol (Nom):
    #5
  • Tip Type:
    Torq-Set
  • Type:
    Insert Bit
  • Wt.:
    0.01 lb

 Help us improve our product information

Description

Torq-Set Insert Bits are used in torque-sensitive applications
The Torq-Set head is similar in appearance to a Phillips drive in that it has a cross with 4 arms
In Torq-Set screw heads the arms of the cross are offset from each other and do not align to form intersecting slots across the top of the head
Because of this, a regular Phillips or flat-head screwdriver will not fit the head
The Torq-Set screw drive is commonly used in aerospace applications
