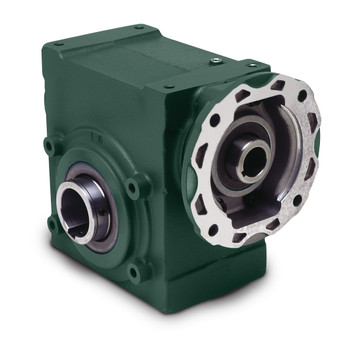

Dodge 23Q20H14 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 23Q20H14 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:4.81 Inch / 122.174 Millimeter
-
Base to Center of Output Shaft:2.5 Inch / 63.5 Millimeter
-
Bolt Hole Diameter:0.375 Inch / 9.525 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:2.31 Inch / 58.674 Millimeter
-
EAN:782475727933
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:2HP
-
Input Shaft Diameter:0.875 Inch / 22.225 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 20 To 1 Nominal Ratio; 143TC/145TC Frame; Quill Input; Bushed Output; Worm Gear; 23 Series; Base Mounted; 7/8 Input Shaft Diameter
-
Manufacturer Internal Number:23Q20H14
-
Manufacturer Item Number:23Q20H14 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:23
-
Maximum Overhung load value And um:1610Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:143TC/145TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:2.31 Inch / 58.67 Millimeter
-
Nominal Max Input Rating:2HP
-
Nominal Max Output RPM:87.5
-
Nominal Ratio:0.834027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Totally Enclosed Non-Vented Sealing / Maximum Bore Required No Bushing
-
Output Bore Range:1 To 1-7/16 Inch / 25.4 To 36.513 Millimeter
-
Output Bore:1.438 Inch / 36.525 Millimeter
-
Output RPM at 1750 RPM Input:88
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque:1178In-Lbs
-
Output Type:Bushed
-
Overall Height:8.08 Inch / 205.232 Millimeter
-
Overall Length:9.12 Inch / 231.648 Millimeter
-
Overall Width:6.62 Inch / 168.148 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:21.772
-
Weight / LBS:55
