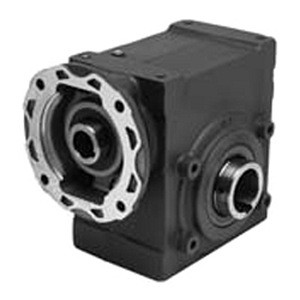

Dodge 20Q60H56 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 20Q60H56 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:4.24 Inch / 107.696 Millimeter
-
Base to Center of Output Shaft:2.24 Inch / 56.896 Millimeter
-
Bolt Hole Diameter:0.375 Inch / 9.525 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:2 Inch / 50.8 Millimeter
-
EAN:782475748792
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:0.56HP
-
Input Shaft Diameter:0.625 Inch / 15.875 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 60 To 1 Nominal Ratio; 56C Frame; Quill Input; Bushed Output; Worm Gear; 20 Series; Base Mounted; 5/8 Input Shaft Diameter
-
Manufacturer Internal Number:20Q60H56
-
Manufacturer Item Number:20Q60H56 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:20
-
Maximum Overhung load value And um:1560Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:56C
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:2 Inch / 50.8 Millimeter
-
Nominal Max Input Rating:0.5HP
-
Nominal Max Output RPM:29.2
-
Nominal Ratio:2.50069444444444
-
Noun:Reducer
-
Other Features:Single Reduction / Without Bushing / Totally Enclosed Non-Vented Sealing / Maximum Bore Required No Bushing
-
Output Bore Range:1 To 1-1/4 Inch / 25.4 To 31.75 Millimeter
-
Output Bore:1.25 Inch / 31.75 Millimeter
-
Output RPM at 1750 RPM Input:29
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque:767In-Lbs
-
Output Type:Bushed
-
Overall Height:7.5 Inch / 190.5 Millimeter
-
Overall Length:8.47 Inch / 215.138 Millimeter
-
Overall Width:6.5 Inch / 165.1 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:13.608
-
Weight / LBS:48
