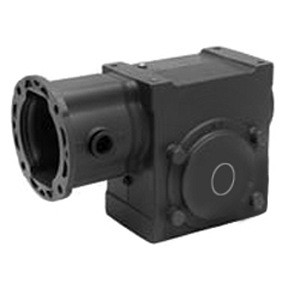

Dodge 17A15L56 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 17A15L56 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:3.74 Inch / 94.996 Millimeter
-
Base to Center of Output Shaft:1.99 Inch / 50.546 Millimeter
-
Bolt Hole Diameter:0.313 Inch / 7.95 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:1.75 Inch / 44.45 Millimeter
-
EAN:782475776672
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:1.27HP
-
Input Shaft Diameter:0.625 Inch / 15.875 Millimeter
-
Input Shaft Length:1.15 Inch / 29.21 Millimeter
-
Input Type:C-Face Coupling
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 15 To 1 Nominal Ratio; 56C Frame; Coupling Input; Left Hand Output; Worm Gear; 17 Series; Base Mounted; 5/8 Input Shaft Diameter
-
Manufacturer Internal Number:17A15L56
-
Manufacturer Item Number:17A15L56 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:17
-
Maximum Overhung load value And um:1190Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:56C
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:1.75 Inch / 44.45 Millimeter
-
Nominal Max Input Rating:1HP
-
Nominal Max Output RPM:116.7
-
Nominal Ratio:0.625694444444444
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:117
-
Output Shaft Diameter:0.875 Inch / 22.225 Millimeter
-
Output Shaft Length:1.74 Inch / 44.196 Millimeter
-
Output Torque:583In-Lbs
-
Output Type:Left Hand
-
Overall Height:7 Inch / 177.8 Millimeter
-
Overall Length:10.92 Inch / 277.368 Millimeter
-
Overall Width:7.56 Inch / 192.024 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:20.88
-
Weight / LBS:46
